Home Product Hole plug
Protective ring Rubber wire ring Seismic loop Buckle type hole plug STRAIN RELIEF BUSHING Cable gland Square wire guard ring Hole plug Plug head Threaded plug Screw hole plug U-shaped wire guard ring
Product Introduction
Material: UL qualified NYLON66 (black), fire rating 94V-2.
Purpose: To transform rough iron holes into smooth wire outlet holes. Protection and insulation of various wires and cables.
Usage: No tools required, just press lightly with your hand to complete the assembly.
Product parameters

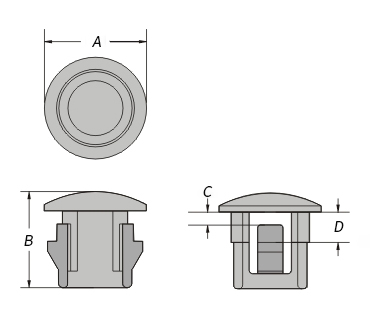

Part No A B C D Sheet metal aperture Applicable sheet metal thickness material colour Package
HP-5 6.3 5.9 0.8 1.9 5 1.8 NYLON66 black 100PCS
HP-6 7.8 7.8 0.8 2.6 6 2.5 NYLON66 black 100PCS
HP-8 10.3 8.1 0.8 1.75 7.9 1.6 NYLON66 black 100PCS
HP-10 13 10.5 0.8 2.4 9.5 3.2 NYLON66 black 100PCS
HP-13S 14.5 10.1 0.8 2.4 12.7 3.2 NYLON66 black 100PCS
HP-13 16.5 10.9 0.8 2.4 12.7 3.2 NYLON66 black 100PCS
HP-15 16.7 10.3 0.8 2.4 14.3 3.2 NYLON66 black 100PCS
HP-16 19.5 10 0.8 2.4 15.9 3.2 NYLON66 black 100PCS
HP-19 22.9 10 0.8 2.4 19.1 3.2 NYLON66 black 100PCS
HP-22 25.8 11.3 0.8 2.4 22.2 3.2 NYLON66 black 100PCS
HP-23 27 11.4 0.8 2.4 23.4 3.2 NYLON66 black 100PCS
HP-25 29 11.6 0.8 2.4 25.1 3.2 NYLON66 black 100PCS
HP-30 34.5 12 0.8 2.4 30.1 3.2 NYLON66 black 100PCS
HP-35 38.1 14.3 0.8 2.4 34.9 3.2 NYLON66 black 100PCS
HP-38 42.1 11.2 0.8 2.4 38.1 3.2 NYLON66 black 100PCS
HP-45 49.7 11.8 0.8 2.4 44.5 3.2 NYLON66 black 100PCS
HP-45L 49.7 11.8 0.8 2.4 45.5 3.2 NYLON66 black 100PCS
